SMAW MMA HD SERIES
FUNCTIONS
·
Manual Metal ARC Welding & Lifting ARC Striking TIG Carbon ARC Gouging.
INDUSTRIES
·
Heavy
Industrial Fabrication
·
Oil
& Gas Industries Fabrication
·
Industrial Maintenance
·
Automobile Industries
·
Pipe
Line Welding
·
Stainless Steel Fabrication
·
Process
Industries
·
Cement
Industries
·
Ship
Building Yard
|
PARAMETERS |
|
|||
|
|
MACHINE |
MODELS |
|
|
|

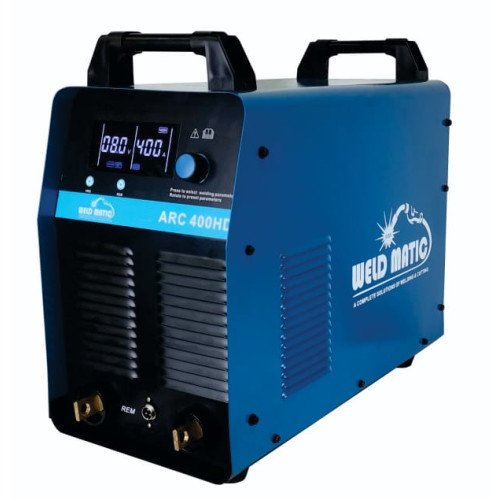

ARC-400 HD |

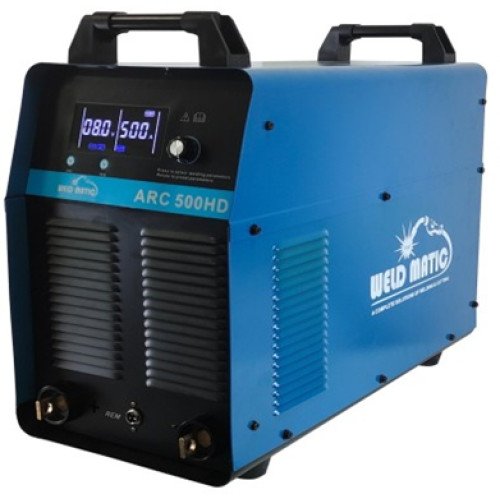

ARC-500 HD |

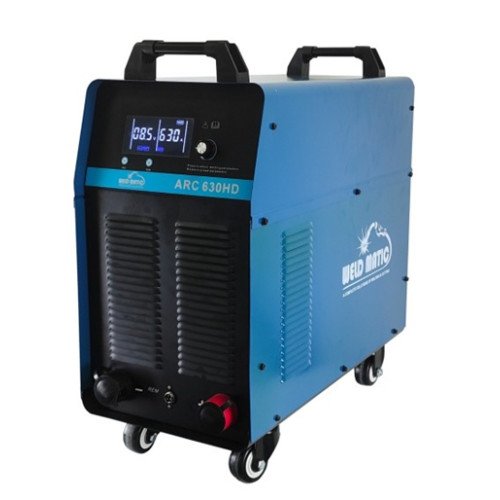

ARC-630 HD |

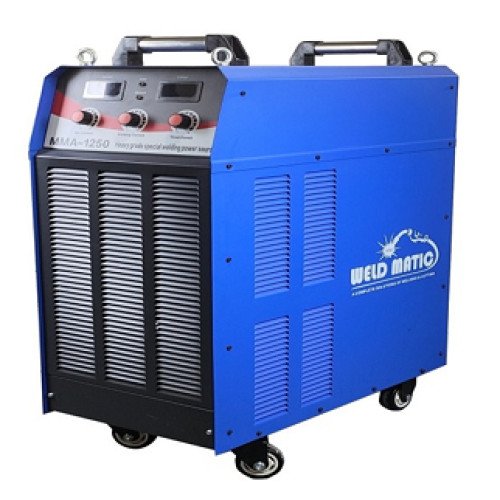

ARC-1250 HD |
|
|
Input Voltage (V) |
3Ph. 415V ± 10% |
3Ph. 415V ± 10% |
3Ph. 415V ± 10% |
3Ph. 415V
± 10% |
|
Frequency (Hz) |
50Hz |
50Hz |
50Hz |
50Hz |
|
Rated Input Current (A) |
24 A |
32 A |
58 A |
83 A |
|
Power (KVA) |
17 KVA |
23 KVA |
42 KVA |
60 KVA |
|
No Load Voltage (V) |
78 V DC |
84 V DC |
84 V DC |
85 V DC |
|
Output Current Range (A) |
10-400 A DC |
10-500 A DC |
10-600 A DC |
50-1200 A DC |
|
Rated Output Voltage (V) |
34.4 V DC |
39.2 V DC |
42 V DC |
44 V DC |
|
Duty Cycle @ 40dc (%) |
60% |
60% |
100% |
100% |
|
No Load Loss (W) |
80 W |
80 W |
100 W |
240 W |
|
Efficiency (%) |
85% |
85% |
85% |
85% |
|
Power Factor (PF) |
0.95 |
0.95 |
0.95 |
0.95 |
|
Electrode Size (mm) |
ø 1.6mm-5mm |
ø 2.4mm-6mm |
ø 2.4mm-6mm |
ø 2.4mm-11mm |
|
Insulation Grade |
FClass |
FClass |
FClass |
FClass |
|
Protection Class |
IP21S |
IP21S |
IP21S |
IP21S |
|
Nett. Weight Power Source (Kg.) |
21.4 K.g |
25.1 K.g |
41.5 K.g |
84.4 K.g |
|
Dimensions (mm) |
535x260x475 |
605x283x522 |
650x315x670 |
676x360x955 |
FEATURES
· Compact Size, Lightweight & Power Saving.
·
Strong
Current Output & Industrial Welding and Gouging Performance.
·
Step less Adjustment of
Current in a wide range.
·
Digital Display for
Accurate Parameter Pre-set with Single potentiometer control.
·
Suitable for Mild Steel,
Alloy steel & Stainless steel etc.
·
Enhanced and efficient Soft
Switching Invertor Components.
·
Machine use for all welding
positions.
·
Machines can use for
Scratch TIG functions.
·
Built in VRD (Voltage
Reducing Device) on/off.
·
Over Temperature Tripping.
·
Output Short-Circuit
protection.
·
EMC protection built in
input & output circuit.
