SMAW MMA SERIES
FUNCTIONS
· Manual Metal ARC Welding & Lifting ARC Striking TIG
INDUSTRIES
· Domestic Fabrication
· Agro Industries Fabrication
· Industrial Maintenance
· Automobile Workshop
· Stainless Steel Fabrication
|
PARAMETERS |
MACHINE MODELS |
||
|

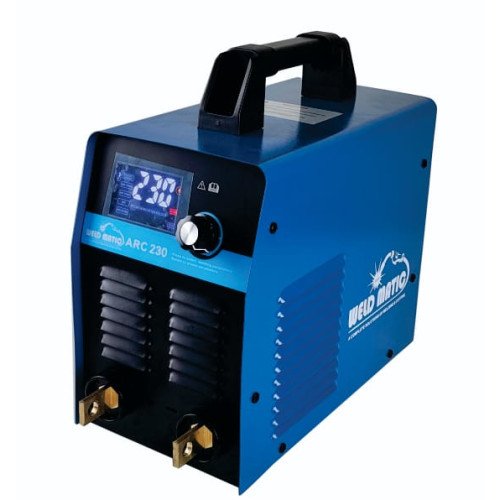

ARC-230 |

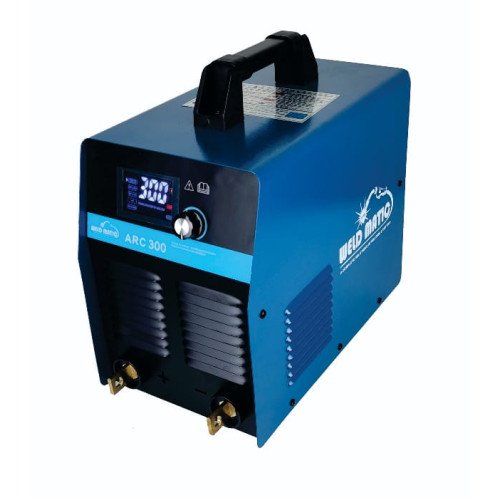

ARC-300 |

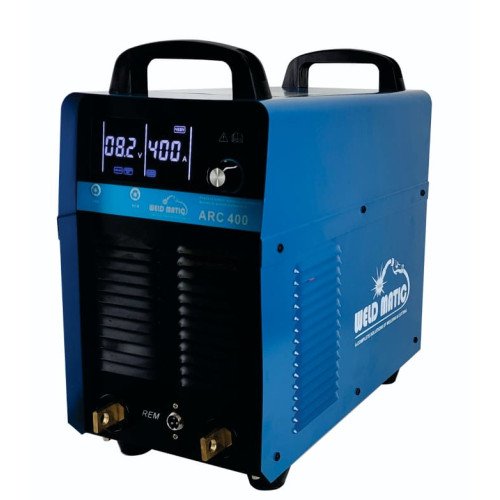

ARC-400 |
|
|
Input Voltage (V) |
1Ph. 220V ± 10% |
1Ph. 220V ± 10% |
3Ph. 415V ± 10% |
|
Frequency (Hz) |
50Hz |
50Hz |
50Hz |
|
Rated Input Current (A) |
41 A |
55 A |
18 A |
|
Power (KVA) |
9.0 KVA |
12.0 KVA |
13 KVA |
|
No Load
Voltage (V) |
65 V DC |
65 V DC |
68 V DC |
|
Output Current
Range (A) |
30-200 A DC |
30-250 A DC |
10-350 A DC |
|
Rated Output Voltage (V) |
28 V DC |
29.6 V DC |
32.8 V DC |
|
Duty Cycle
@ 40dc (%) |
60% |
60% |
60% |
|
No Load Loss (W) |
20 W |
20 W |
60 W |
|
Efficiency (%) |
83% |
83% |
89% |
|
Power Factor
(PF) |
0.8 |
0.8 |
0.95 |
|
Electrode Size (mm) |
ø 1.6mm-3.15 mm |
ø 1.6mm-3.15 mm |
ø 1.6mm-4mm |
|
Insulation Grade |
F Class |
F Class |
FClass |
|
Protection Class |
IP21S |
IP21S |
IP21S |
|
Nett. Weight Power Source
(Kg.) |
5.2 K.g |
7.8 K.g |
13.4 K.g |
|
Dimensions (mm) |
335x156x310 |
375x210x360 |
440x220x400 |
FEATURES
·
Compact Size, Lightweight
& Power Saving.
·
Step less Adjustment of
Current in a wide range.
·
Digital Display for
Accurate Parameter Pre-set with Single potentiometer control.
·
Suitable for Mild Steel
& Stainless Steel etc.
·
Enhanced and efficient Soft
Switching Invertor Components.
·
Latest Inverter Based
Technology.
·
Built in VRD (Voltage
Reducing Device) on/off.
·
Over Temperature Tripping.
·
Output Short-Circuit
protection.
