SAW SERIES
FUNCTIONS
·
Submerged ARC welding, Manual ARC welding
& Gouging
INDUSTRIES
·
Heavy Industrial Fabrication
·
Oil
& Gas Industries Fabrication
·
Industrial
Maintenance
·
Automobile
Industries
·
Railways heavy Fabrication
·
PEB
Industries
·
Stainless Steel Fabrication
·
Process Industries
·
Cement
Industries
·
Ship Building yard
·
Power generation industries
|
PARAMETERS |
MACHINE MODELS |
|

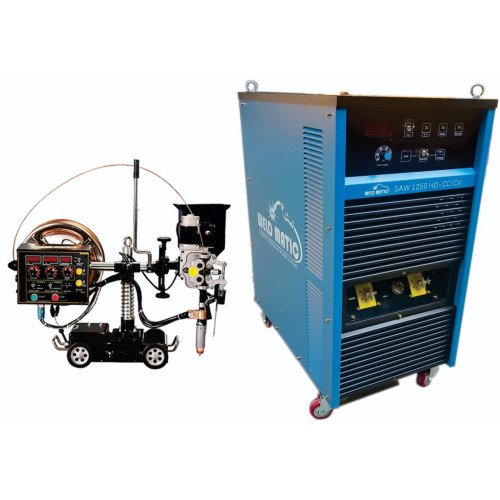

SAW-1250 HD CC/CV |
|
|
Input Voltage (V) |
3Ph. 415± 10% |
|
Frequency (Hz) |
50Hz |
|
Rated Input Current
(A) |
111 A |
|
Power (KVA) |
80 KVA |
|
No Load Voltage (V) |
92 V DC |
|
Output Current Range (A) |
60-1250 A DC |
|
Rated Output Voltage (V) |
40 V DC |
|
Duty Cycle @ 40dc (%) |
100% |
|
No Load Loss (W) |
250 W |
|
Efciency
(%) |
83% |
|
Power Factor (PF) |
0.95 |
|
Wire Diameter (mm) |
ø 2mm-6mm |
|
Insulation Grade |
F Class |
|
Protection Class |
IP21S |
|
Type of Wire
Feeder |
4 Roll |
|
Wire Feeding
Speed |
50-460cm/min |
|
Nett. Weight Tractor (Kg.) |
45kg |
|
Nett. Weight Power
Source (Kg.) |
103kg |
|
Dimensions (mm) |
520x295x525 |
FEATURES
·
Compact Size,
Lightweight & Power Saving.
·
Strong Current Output, Superior Welding and Gouging
Performance
·
Step less Adjustment of Current & Voltage in a wide range.
·
Digital Display for Accurate Parameter Preset.
·
Suitable for
Mild Steel, Alloy Steel &
Stainless Steel etc.
·
Enhanced and efficient Soft Switching Invertor Components.
·
Multipurpose Machine
for welding with low Operating Cost.
