GTAW AC/DC TIG SERIES
FUNCTIONS
·
DC TIG, AC TIG, PULSE TIG & MMA.
INDUSTRIES
·
Aluminum Fabrication Industries.
·
Aluminum Casting Industries.
·
Industrial
Maintenance
·
Automobile
Industries
·
Railways heavy Fabrication
·
PEB
Industries
·
Stainless Steel Fabrication
·
Interior decoration Industries.
|
PARAMETERS |
MACHINE MODELS |
|

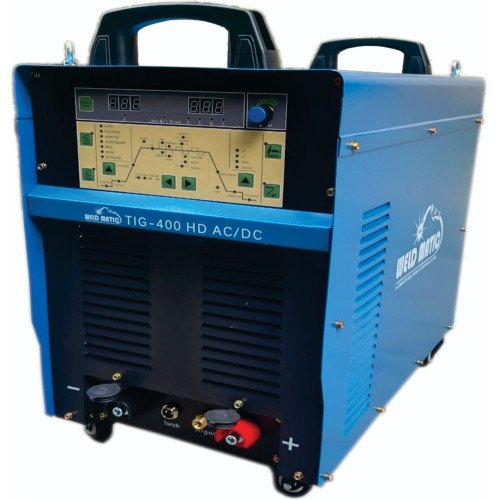

TIG-400 HD AC/DC |
|
|
Input Voltage
(V) |
3Ph. 415± 10% |
|
Frequency (Hz) |
50Hz |
|
Rated Input Current (A) |
24 A |
|
Power (KVA) |
17.3 KVA |
|
No Load Voltage (V) |
70 V AC/DC |
|
Output Current Range (A) |
30-400 A AC/DC |
|
Rated Output Voltage (V) |
32 V AC/DC |
|
Duty Cycle @ 40dc (%) |
60% |
|
No Load Loss (W) |
80 W |
|
Efciency
(%) |
83% |
|
Power Factor (PF) |
0.95 |
|
Arcing Way |
High Frequency |
|
Insulation Grade |
F Class |
|
Protection Class |
IP21S |
|
Pre Flow Time (Sec.) |
0.1-1.5 Sec. |
|
Post Flow Time (Sec.) |
0.1-5 Sec. |
|
Down Slope (Sec.) |
0.1-10 Sec. |
|
Nett. Weight Power Source (Kg.) |
60kg |
|
Dimensions (mm) |
670x375x665 |
FEATURES
·
Compact Size,
Lightweight & Power Saving.
·
Trigger Mode 2 Step & 4 Step
·
Strong Current Output, Superior MIG/MAG
& MMA Welding process.
·
Step less Adjustment of Current & Voltage in a wide range.
·
Digital Display for Accurate Parameter Preset.
·
Suitable for
Aluminum, Mild Steel, Alloy
Steel & Stainless Steel etc.
·
Enhanced and efficient Soft Switching Invertor Components.
·
Machine having functions of
Pre flow, Post flow, Upslope, Downslope & hot
start.
·
Machine can use in AC/DC PULSE TIG Welding.
