GTAW TIG SERIES
FUNCTIONS
· TIG High Frequency, Manual Metal ARC Welding.
INDUSTRIES
· Heavy Industrial Fabrication
· Oil & Gas Industries Fabrication
· Industrial Maintenance
· Automobile Industries
· Pipe Line Welding
· Stainless Steel Fabrication
· Process Industries
· Cement Industries
· Ship Building yard
· Stainless Steel Tube Mill.
|
PARAMETERS |
MACHINE MODELS |
||
|

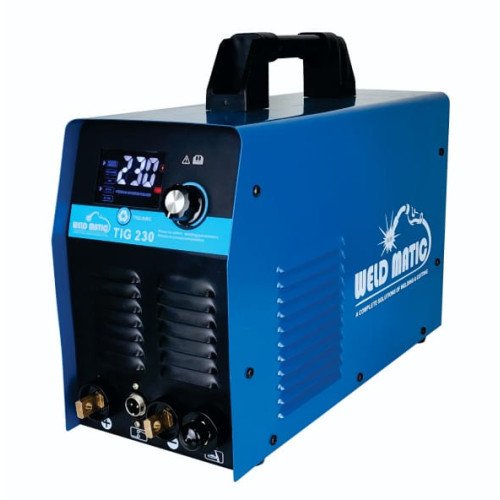

TIG/MMA 230 |

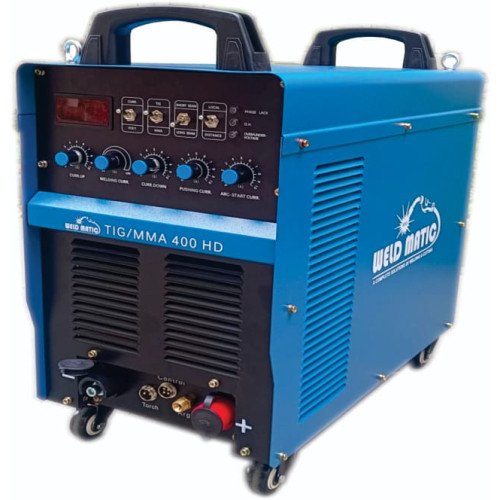

TIG/MMA 400 |

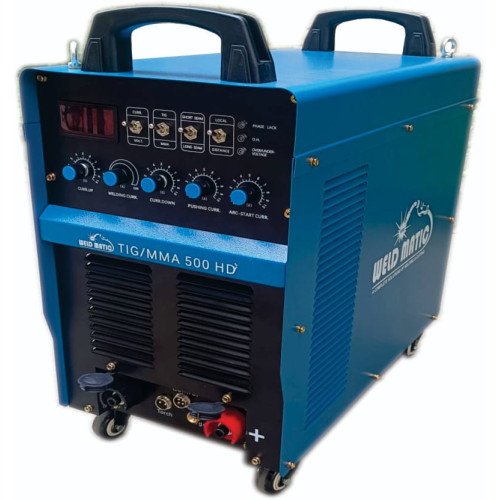

TIG/MMA 500 |
|
|
Input Voltage
(V) |
1Ph. 220± 10% |
3Ph. 415± 10% |
3Ph. 415± 10% |
|
Frequency (Hz) |
50Hz |
50Hz |
50Hz |
|
Rated Input Current
(A) |
41 A |
24 A |
33 A |
|
Power (KVA) |
9 KVA |
17.3 KVA |
23.7 KVA |
|
No Load Voltage (V) |
65 V DC |
80 V DC |
80 V DC |
|
Output Current Range
(A) |
10-200 A DC |
20-400 A DC |
20-500 A DC |
|
Rated Output Voltage
(V) |
18 V DC |
32 V DC |
34 V DC |
|
Duty Cycle @ 40dc (%) |
60% |
60% |
60% |
|
No Load Loss (W) |
20 W |
80 W |
80 W |
|
Efciency
(%) |
83% |
83% |
83% |
|
Power Factor (PF) |
0.8 |
0.95 |
0.95 |
|
Arcing Way |
High Frequency |
High Frequency |
High Frequency |
|
Insulation
Grade |
F Class |
FClass |
FClass |
|
Protection
Class |
IP21S |
IP21S |
IP21S |
|
Pre Flow Time (Sec.) |
0.1-1.5 Sec. |
0.1-1.5 Sec. |
0.1-1.5 Sec. |
|
Post Flow Time (Sec.) |
0.1-5 Sec. |
0.1-5 Sec. |
0.1-5 Sec. |
|
Down Slope (Sec.) |
0.1-10 Sec. |
0.1-10 Sec. |
0.1-10 Sec. |
|
Nett. Weight Power Source (Kg.) |
6.7 kg. |
40 Kg. |
55 Kg. |
|
Dimensions
(mm) |
384x160x300 |
520x260x360 |
520x260x360 |
FEATURES
·
Compact Size,
Lightweight & Power Saving.
·
Trigger Mode 2 Step & 4 Step
·
Strong Current Output, Superior MIG/MAG
& MMA Welding process.
·
Step less Adjustment of Current & Voltage in a wide range.
·
Digital Display for Accurate Parameter Preset.
·
Suitable for
Mild Steel, Alloy Steel &
Stainless Steel etc.
·
Enhanced and efficient Soft Switching Invertor Components.
·
Machine having functions of
Pre flow, Post flow, Upslope, Downslope & hot start.
·
Spot TIG Welding.
